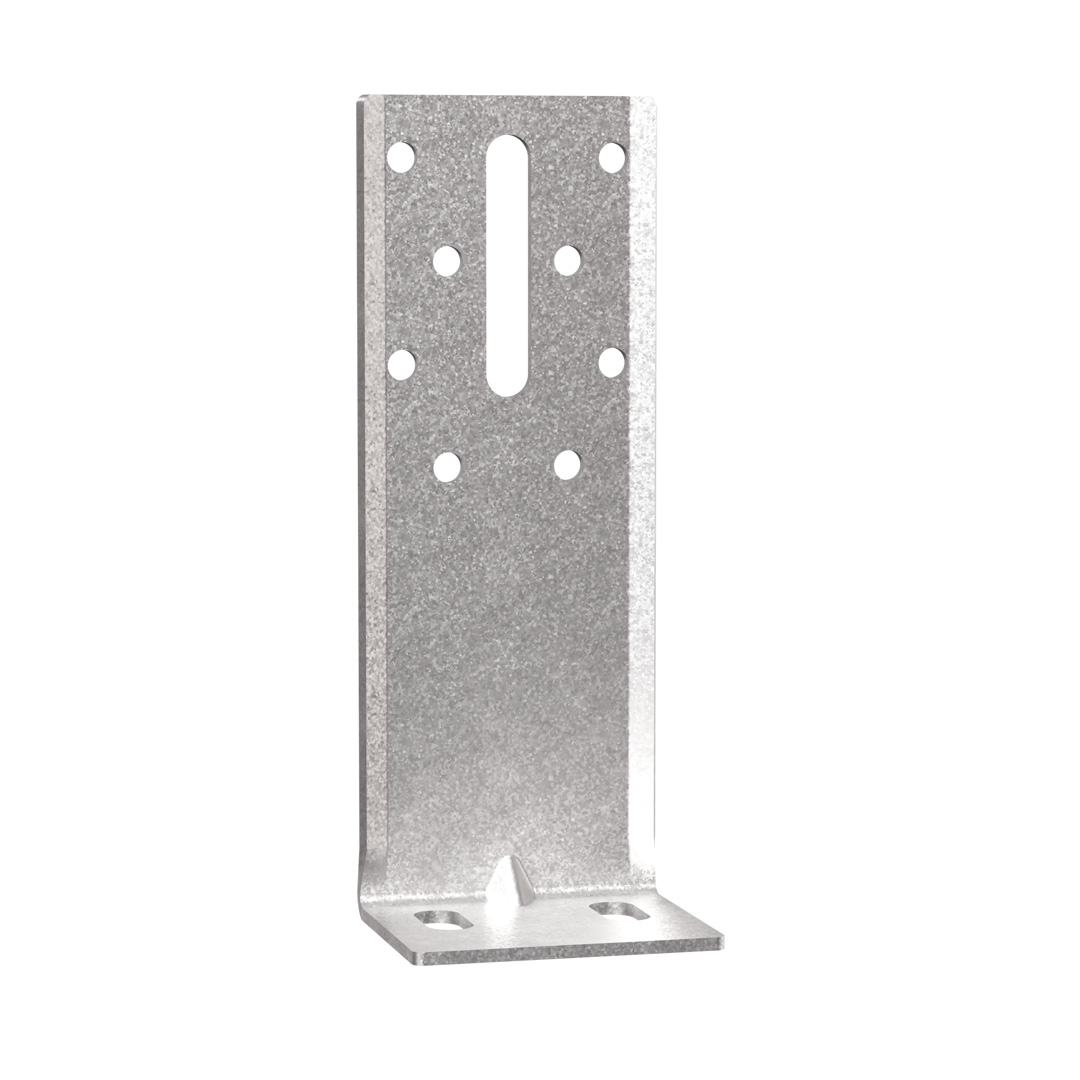

EBCN

Vinkelbeslag till lättväggskonstruktion

EBC vinkelbeslag är designade för att uppfylla de generella regler som finns för konstruktion och installation av utvändig värmeisolering och fasadbeklädnad. EBCN följer CSTB specifikationerna 3194, 3316, 3422 och ETAG034 och är en del av ITE-serien utvecklad av Simpson Strong-Tie^®.

Tekniskt datablad

Användningsklass 2

Acier galvanisé Z450

Produktinformation

Bilder

Disposition des équerres

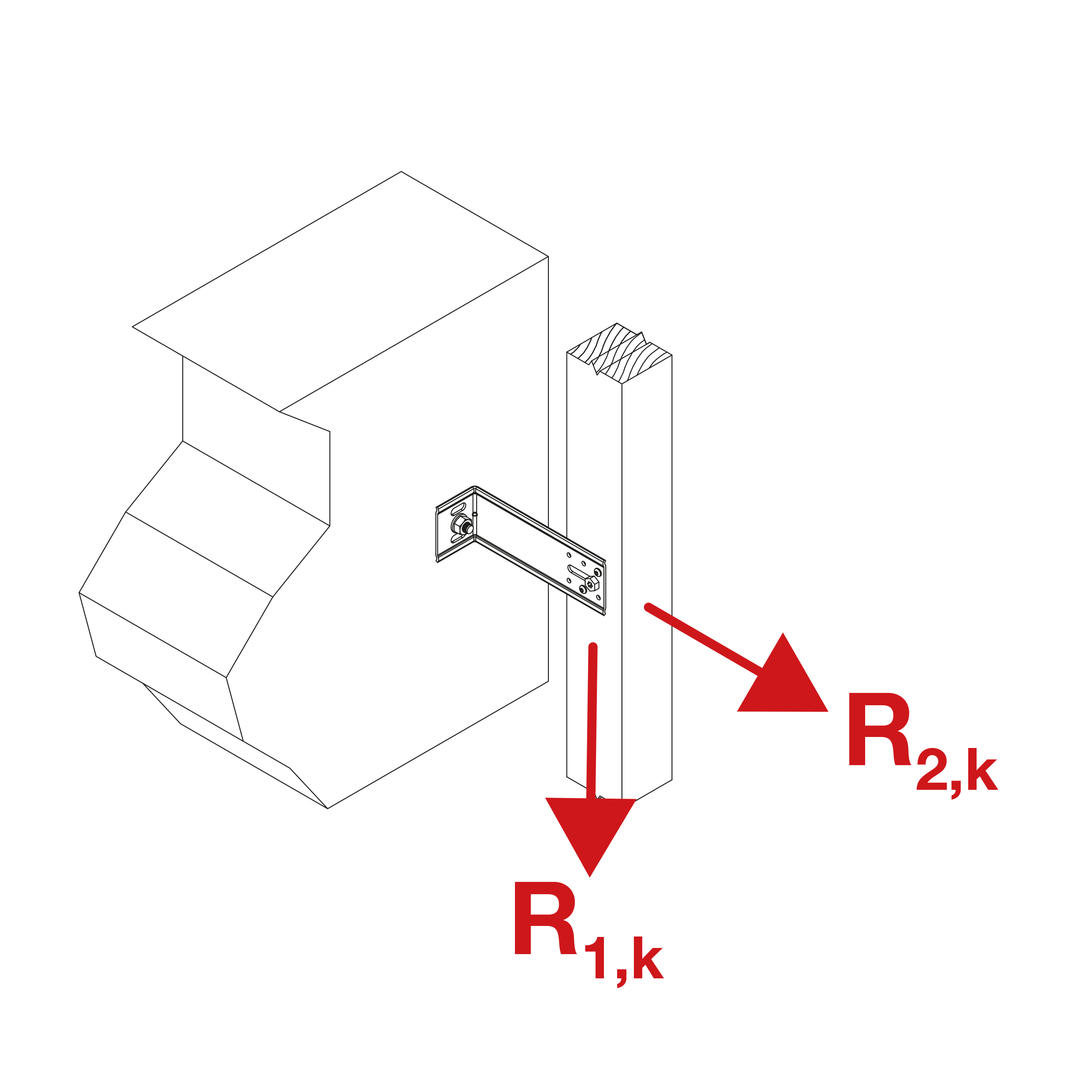

C_EBC_Load direction_Ill_Instld_EU_FR_CY.jpg

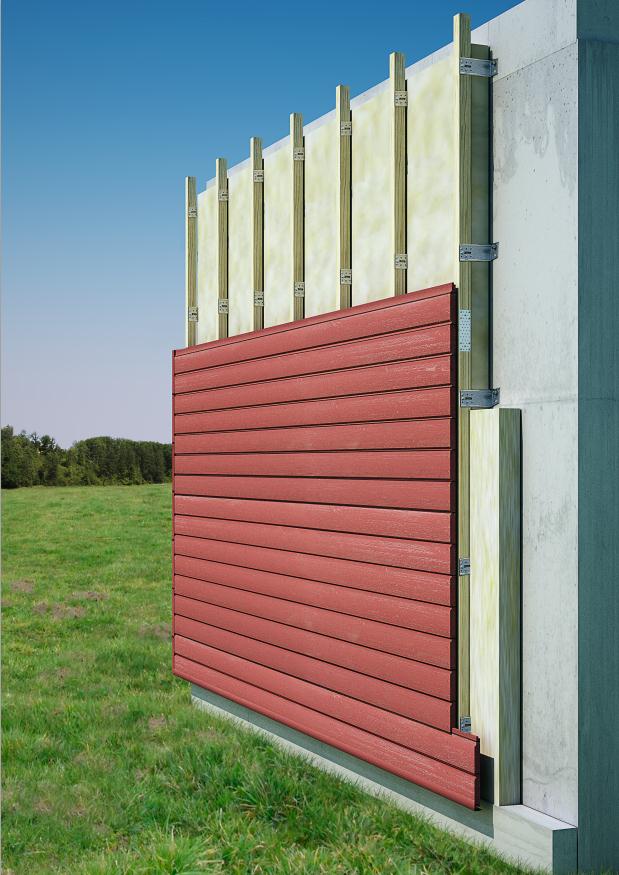

Mise en place d'un pare-pluie

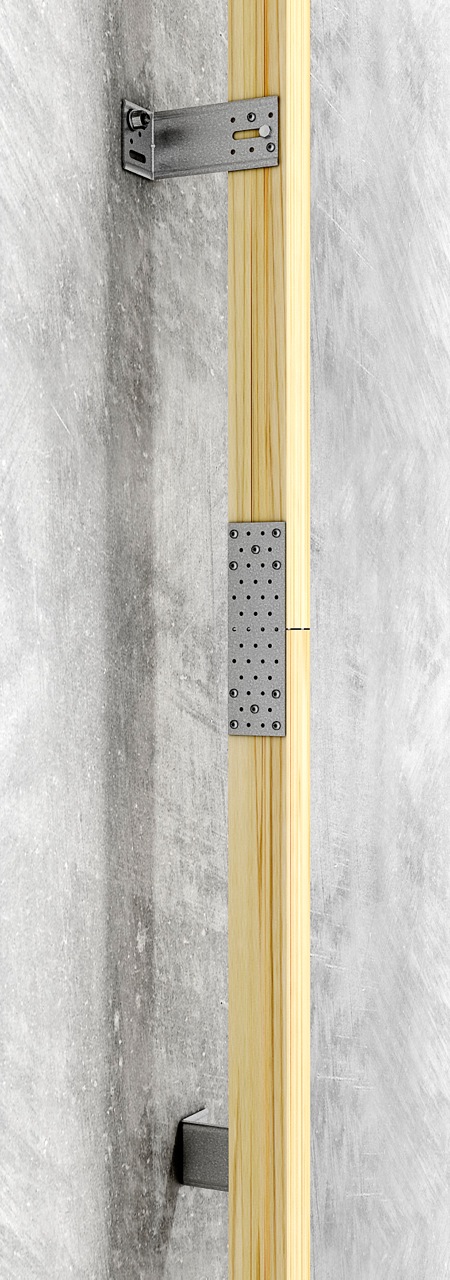

Fixation chevrons bois par équerre EBCN et aboutage des chevrons par plaques perforées NP


Egenskaper

Material

Varmförzinkad stål. Stålkvalitet: S250GD. Zinklagertjocklek = 20 μm

Benefits

Connect vertical timber batten of steel profile directly to the supporting structure.
Creates a zone for insulation or ventilation.
Reduces installation time, materials and cost.
Coating (Z450) suitable for external use protected from direct rain, in ventilated environment with dist.>200m from coast
Oblong hole to adjust alignment on the support.
Oblong hole to adjust the plumb line of the batten/profile,

Applikationer

Header member

Supporting member: concrete, masonry, etc.
Supported member: solid wood, etc.

For Use With

Fastening of timber battens or steel profile, to support exterior cladding (ETICS).

Teknisk data

Dimensioner

Product dimensions

Art. nr.	DB nr.	Product dimensions [mm]				Holes flange A		Holes flange B	Vikt [kg]
Art. nr.	DB nr.	A	B	C	t	Ø6	Dim. avlånga hål	Ø9.0x20 [mm]	Vikt [kg]
EBCN100/2.5	2408465	100	50	60	2.5	8	9.0x51	2	0.19
EBCN110/2.5	2408467	110	50	60	2.5	8	9.0x51	2	0.2
EBCN120/2.5	2408469	120	50	60	2.5	8	9.0x51	2	0.22
EBCN130/2.5	2408470	130	50	60	2.5	8	9.0x51	2	0.23
EBCN140/2.5	2408471	140	50	60	2.5	8	9.0x51	2	0.24
EBCN150/2.5	2408472	150	50	60	2.5	8	9.0x51	2	0.25
EBCN160/2.5	2408473	160	50	60	2.5	8	9.0x51	2	0.26
EBCN170/2.5	2408475	170	50	60	2.5	8	9.0x51	2	0.28
EBCN180/2.5	2408476	180	50	60	2.5	8	9.0x51	2	0.29
EBCN190/2.5	2408477	190	50	60	2.5	8	9.0x51	2	0.3
EBCN200/2.5	2408478	200	50	60	2.5	8	9.0x51	2	0.31
EBCN210/2.5	2408479	210	50	60	2.5	8	9.0x51	2	0.32
EBCN220/2.5	2408480	220	50	60	2.5	8	9.0x51	2	0.34
EBCN230/2.5	2408481	230	50	60	2.5	8	9.0x51	2	0.35
EBCN240/2.5	2408483	240	50	60	2.5	8	9.0x51	2	0.36
EBCN250/2.5	2408484	250	50	60	2.5	8	9.0x51	2	0.37

Product characteristic capacities - Timber to concrete - 1 angle bracket per connection

Art. nr.	Product characteristic capacities - Timber to Concrete - 1 angle bracket per connection
	Fasteners						Characteristic capacities - 1 angle bracket per connection [kN]
	Flange A [kN]				Flange B		R_1,k [kN]		R_2,k [kN]
	Qty	Type	Qty	Type	Qty	Type	1 mm slip	3 mm slip	R_2,k [kN]
EBCN100/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.75	0.75	2.3
EBCN110/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.65	0.72	2.3
EBCN120/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.54	0.69	2.3
EBCN130/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.47	0.67	2.3
EBCN140/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.44	0.63	2.3
EBCN150/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.38	0.58	2.3
EBCN160/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.35	0.55	2.3
EBCN170/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.3	0.51	2.3
EBCN180/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.26	0.48	2.3
EBCN190/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.24	0.46	2.3
EBCN200/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.2	0.42	2.3
EBCN210/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.19	0.41	2.3
EBCN220/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.17	0.38	2.3
EBCN230/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.15	0.36	2.3
EBCN240/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.14	0.33	2.3
EBCN250/2.5	1	Screw Ø8.0x40	2	Screw Ø5.0x40	1	Ø8	0.13	0.31	2.3

Note - Slip under load measured at extremety of bracket

Montage

Fixing

Drill holes: Number and diameter, see table of dimensions.

Wood rafters :
- 1 LAG lag screw dia. 8-50 + 2 screws anti-rotation 5 x 40 mm. (it can be either TTUFS, TTZNFS or SSH screws)
- 1 SSH Ø 8 x 40 mm + 2 screws anti-rotation Ø 5 x 40 mm.(it can be either TTUFS, TTZNFS or SSH screws)
Concrete substrate : FM 753 EVO M8-68/5 anchor or FM-X5 8-80/10 nylon plug
Hollow masonry substrate :FM-X5 8-80/10 nylon plug or chemical anchor: AT-HP or POLY-GP resin + LMAS M8-95/20 threaded rod + SH M16-130 screen.

Installation

Draw the position of brackets, in a staggered manner on either side of the position of the batten/profile. Min 3 bracket per batten/profile. For batten/profile under 80cm: min 2 brackets. The spacing of brackets depends on bracket and anchor capacity, with a maximum of 1m when using "L" profiles or under seismic specifications, and with a maximum of 1.35m otherwhise. When brackets cannot be set in a staggered manner, then the maximum spacing is 0.8m. The ovehang of batten/profile shall not exceed 0.25m.
Secure the bracket onto the support with the appropriate anchor, placed through the top oblong hole.
Set the insulation layer
Secure the batten/profile with one Ø8mm screw in the oblong hole, adjust the verticality of the batten/profile, then set 2 additionnal Ø5mm screw to block the position.
install the cladding/facade with the appropriate fastener.
