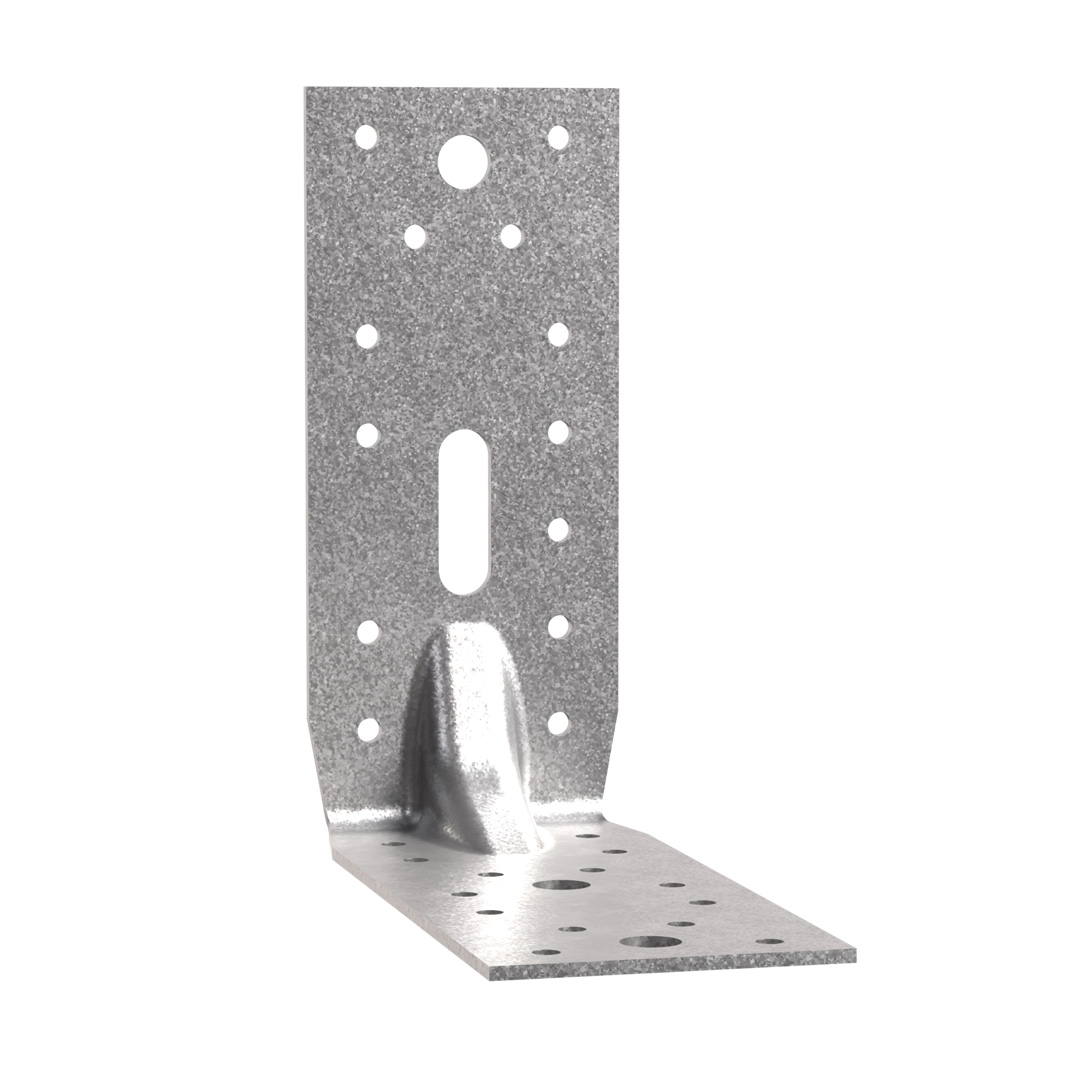

E9/2.5
Höghållfast vinkelbeslag
E9/2,5 förstärkta beslag är designade för strukturella applikationer i trä.
CE-märkt
Tekniskt avtal
Användningsklass 2
EPD
Electrogalvanized steel Z275
Indoor
Produktinformation
Bilder
Egenskaper
Applikationer
Teknisk data
Mått
Dimensioner
| Referens | beslag mått | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| produktmått[mm] | balk[mm] | fläns B[mm] | övrigt | ||||||||
| A[mm] | B[mm] | C[mm] | tjocklek[mm] | rund | avlång | rund | antal per förpackning | vikt[kg] | |||
| Ø5[mm] | Bult[mm] | Ø11x34 | Ø5[mm] | Bult[mm] | |||||||
| E9/2.5 | 154 | 152.5 | 65 | 2.5 | 14 | 1 | 1 | 14 | 2 | 50.0 | 0.35 |
-
Dimensioner
| Referens | vinkelbeslag kapacitet | |||||
|---|---|---|---|---|---|---|
| Simplified produkt capacities - trä beam to trä beam – Max. nailing | ||||||
| antal of Fasteners | Characteristic Capacities - trä C24 - 2 Angle Brackets per Connection[kN] | |||||
| balk | fläns B | R₁,ₖ | R2,k = R3,k | |||
| antal | antal | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| E9/2.5 | 12.0 | 14.0 | 5 | 8.4 | 9.5 | 13 |
* The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
-
Dimensioner
| Referens | vinkelbeslag kapacitet | |||||
|---|---|---|---|---|---|---|
| Simplified produkt capacities - trä beam to trä beam - Min. Nailing | ||||||
| antal of Fasteners | Characteristic Capacities - trä C24 - 2 Angle Brackets per Connection[kN] | |||||
| balk | fläns B | R₁,ₖ | R2,k = R3,k | |||
| antal | antal | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| E9/2.5 | 8.0 | 6.0 | 1.9 | 3.2 | 6.6 | 8.9 |
* The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

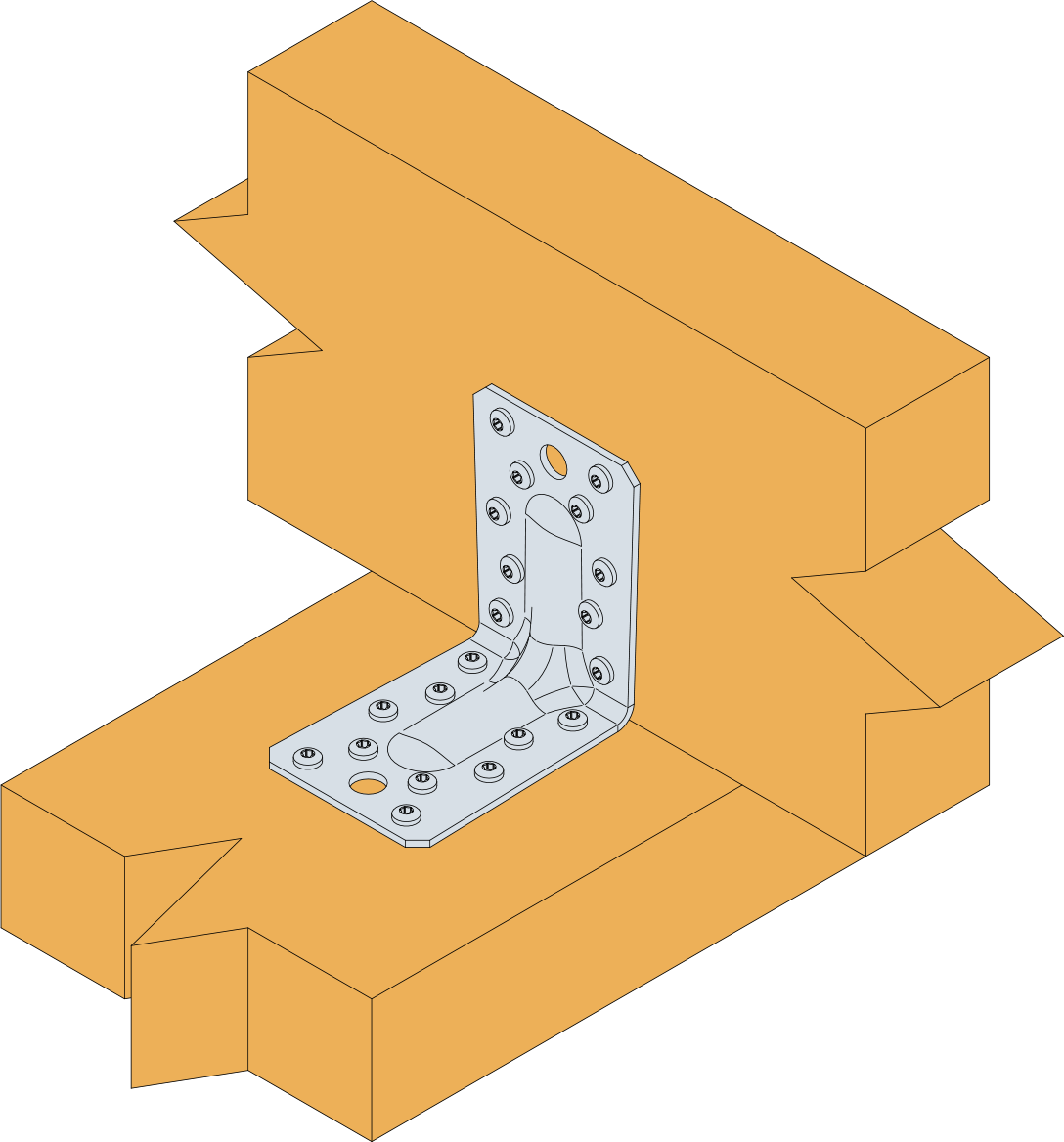

Karakteristisk bärförmåga - Balk-balk fogningar, Fullständig utspikning - 2 vinkelbeslag per fog
Dimensioner
| Referens | vinkelbeslag kapacitet | |||||
|---|---|---|---|---|---|---|
| produkt capacities - trä to trä - Beam to beam - Full nailing | ||||||
| antal of Fasteners | karakteristisk kapacitet - 2 angle brackets per connection - full nailing[kN] | |||||
| balk | fläns B | R₁,ₖ | R2,k = R3,k[kN] | |||
| antal | antal | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| E9/2.5 | 12 | 14 | 5.1 / kmod^(-0.1) | 8.5 / kmod^(-0.1) | 9.5 | 13 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Karakteristisk bärförmåga - Balk-balk fogningar, Delvis utspikning - 2 vinkelbeslag per fog
Dimensioner
| Referens | vinkelbeslag kapacitet | |||||
|---|---|---|---|---|---|---|
| produkt capacities - trä beam to trä beam - Min. nailing | ||||||
| antal of Fasteners | karakteristisk kapacitet - 2 angle brackets per connection - full nailing[kN] | |||||
| balk | fläns B | R₁,ₖ | R2,k = R3,k | |||
| antal | antal | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| E9/2.5 | 8.0 | 6.0 | 2.0 / kmod^(-0.2) | 3.4 / kmod^(-0.2) | 6.6 | 8.9 |
* The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Karakteristisk bärförmåga - Stolp-balk fogningar - 2 vinkelbeslag per fog
Dimensioner
| Referens | vinkelbeslag kapacitet | |||||
|---|---|---|---|---|---|---|
| produkt capacities - trä post to trä beam | ||||||
| antal of Fasteners | karakteristisk kapacitet - 2 angle brackets per connection - full nailing[kN] | |||||
| balk | fläns B | R₁,ₖ | R2,k = R3,k | |||
| antal | antal | CNA4.0x35 | CNA4.0x50 | CNA4.0x35 | CNA4.0x50 | |
| E9/2.5 | 10.0 | 14.0 | 3.1 | 5.1 | 6.7 | 8.6 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

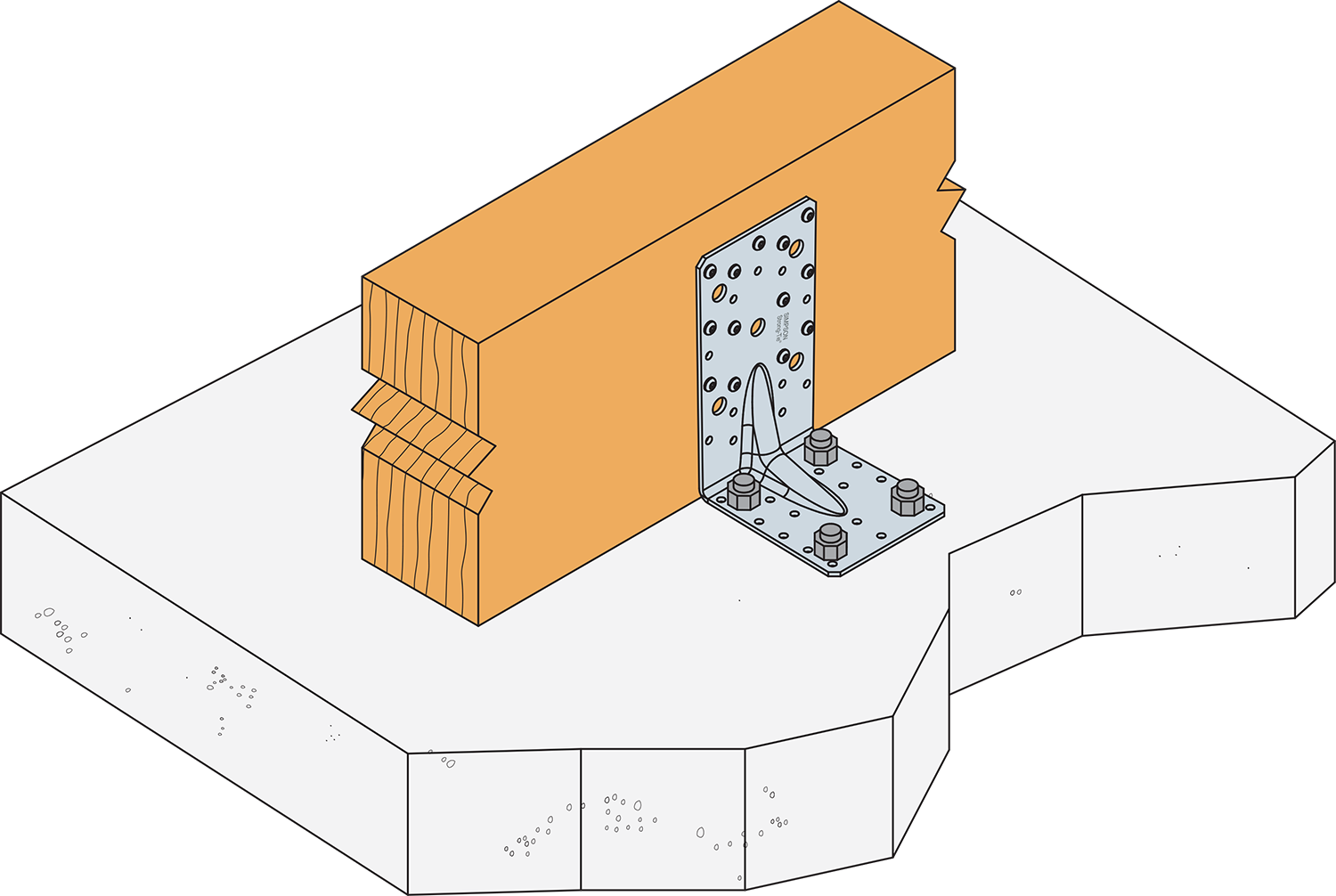

Karakteristisk bärförmåga - Balk-betong fogningar - 2 vinkelbeslag per fog
Dimensioner
| Referens | vinkelbeslag kapacitet | ||||
|---|---|---|---|---|---|
| produkt capacities - trä to betong | |||||
| antal of Fasteners | karakteristisk kapacitet - 2 angle brackets per connection - full nailing[kN] | ||||
| balk | fläns B | R₁,ₖ | |||
| antal | typ | antal | typ | CNA4.0x35 | |
| E9/2.5 | 12 | CNA* | 1 | Ø10 | 6 |
* Refer to Characteristic Capacity table columns for type of fasteners that can be used in Flange A. Capacities vary depending on fastener type used.
The bolt design resistance requirement R#,d is determined from (bolt factor x connection design load F#,d) for the required load direction and fastener. Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Montage
Montage
Tekniska anmärkningar
CAD och BIM-bibliotek
2D
E9/2.5
-
-
-
-
-
-
-
-
3D
E9/2.5
-
-
-
-
-
3D Simplified

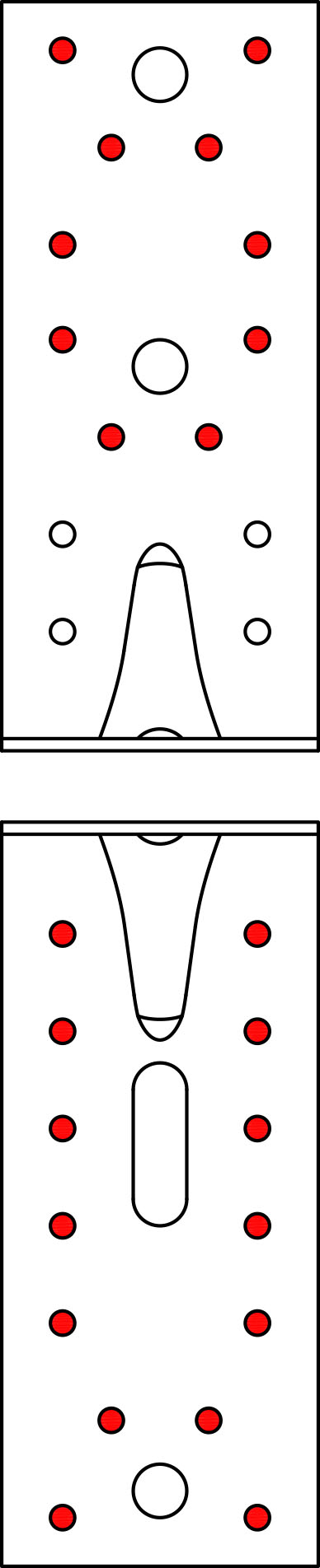

Nailing Pattern
E9/2.5
-
-
-
-
-
-
-
-
-
-
