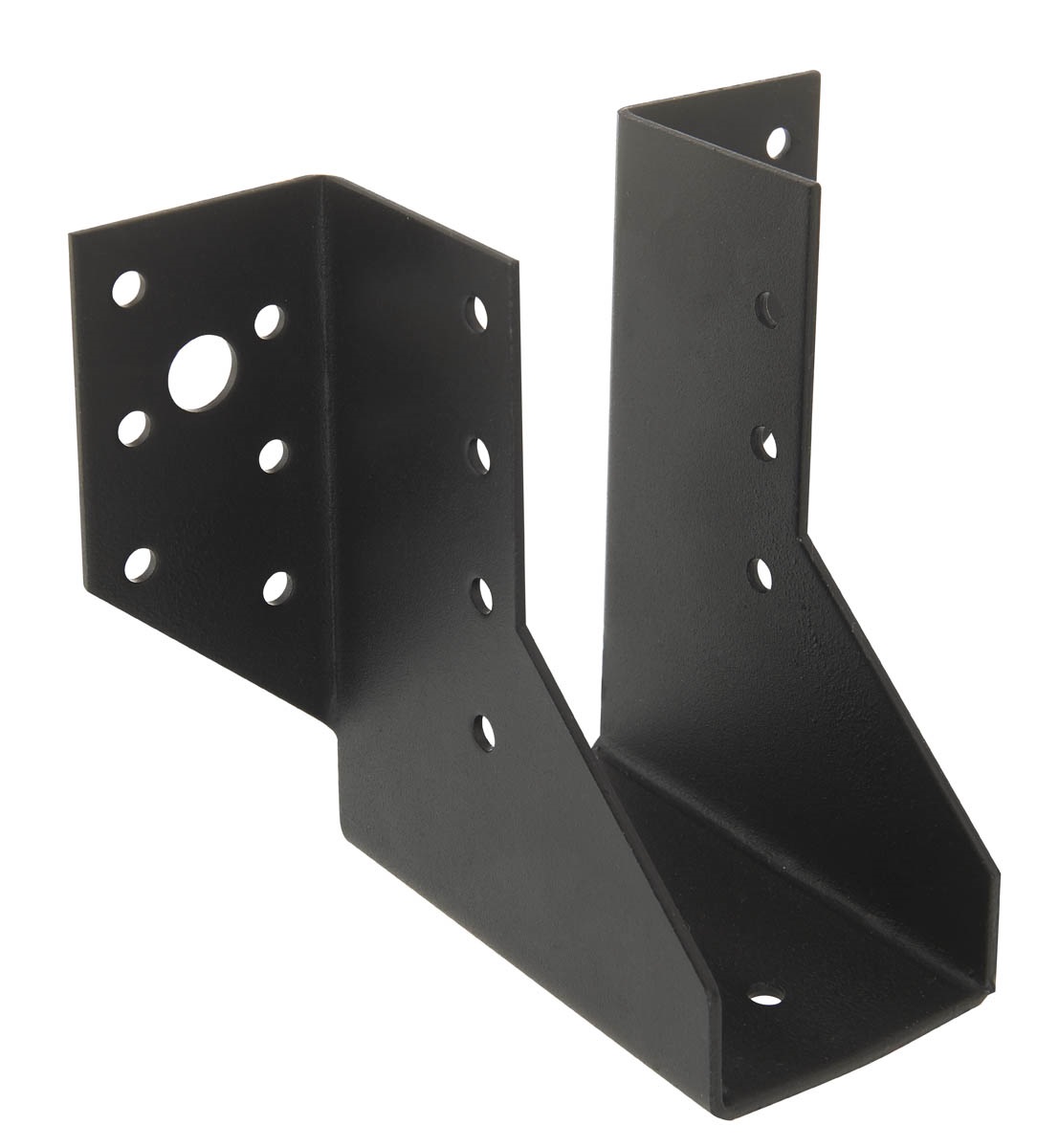

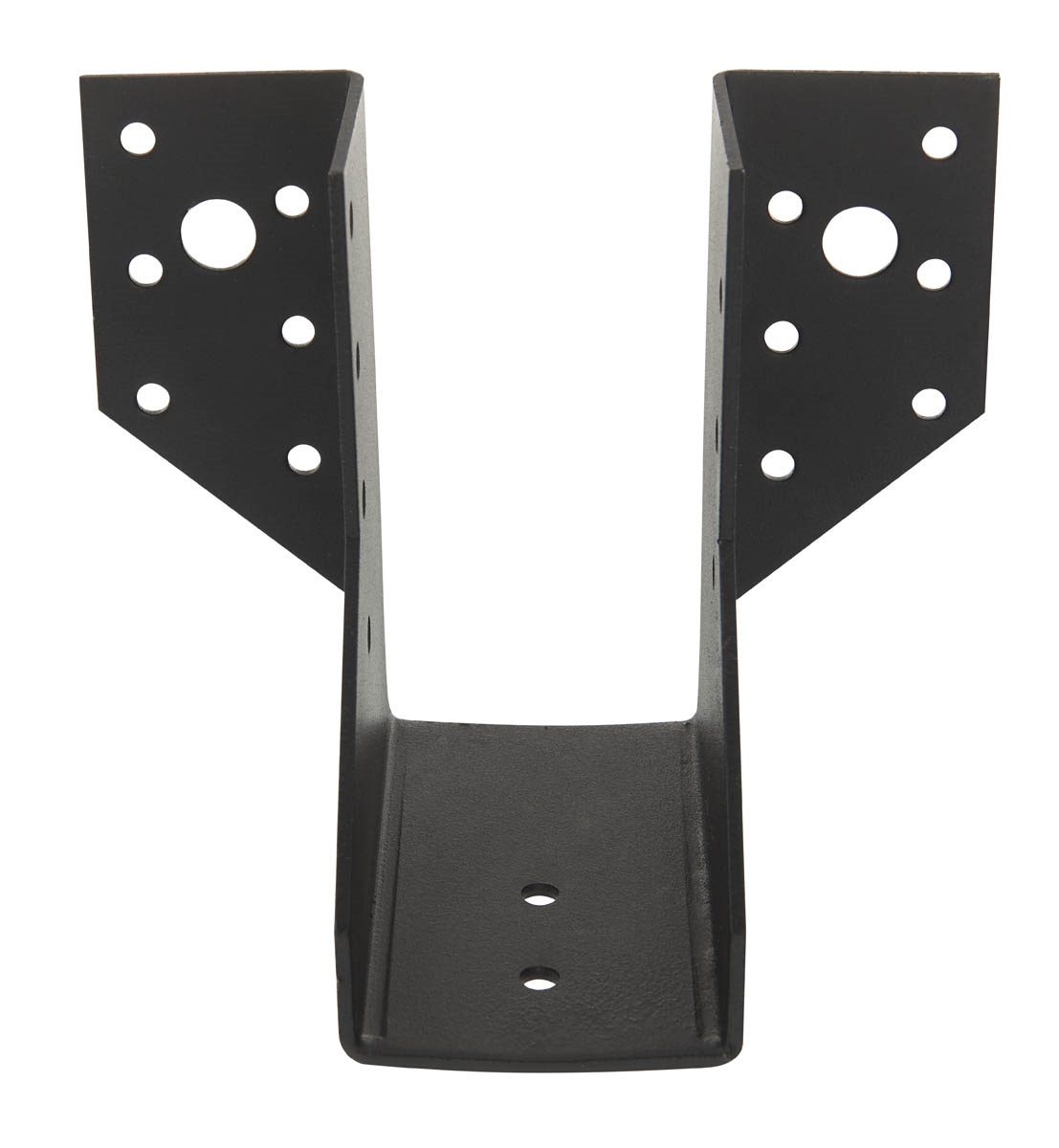

SAEPB
Design Series svartlackerad balksko med utvändiga flikar

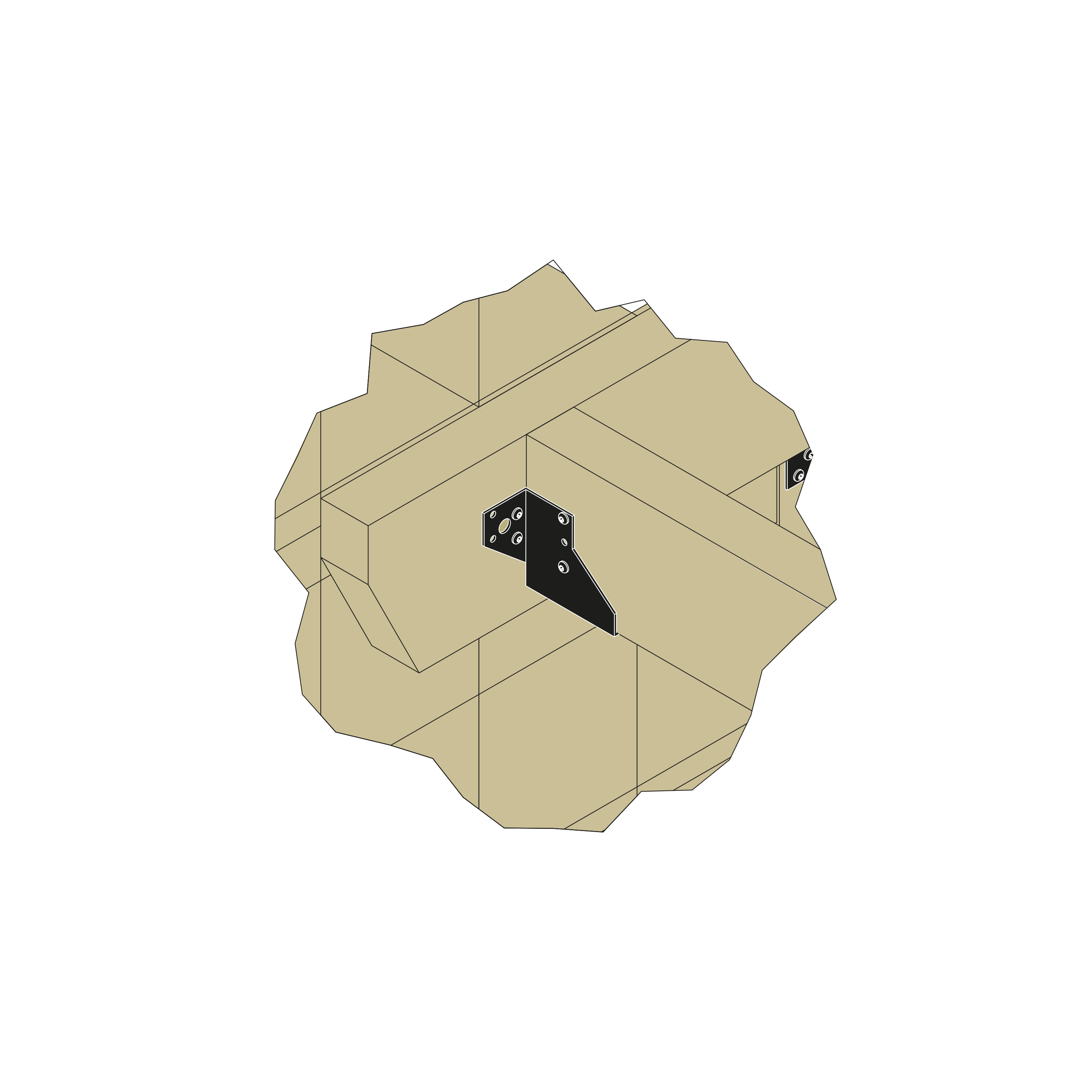

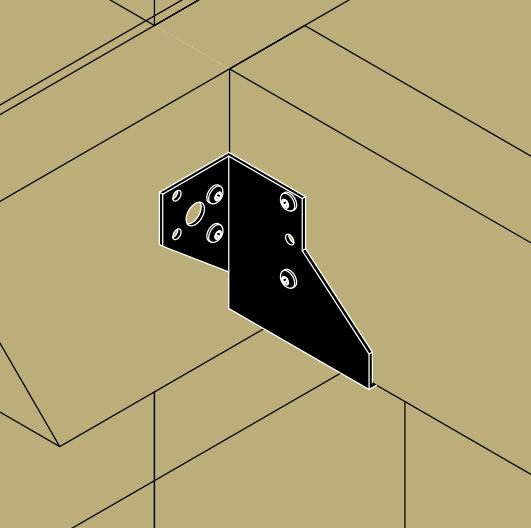

Används för montage av balkar i samma plan.
Svartlackerade för en snygg finnish.
CE-märkt
Tekniskt avtal
Användningsklass 3
Outdoor
RAL 9005
Produktinformation
Bilder
Egenskaper
Applikationer
Teknisk data
Dimensioner
Mått
| Art. nr. | Joist dimensions [mm] | Mått [mm] | Header holes | Joist holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bredd | Höjd | A | B | C | D | F | t | Ø5 | Ø13 | Ø5 | |||
| Min. | Max | Min. | Max | ||||||||||
| SAE200/46/2PB | 44 | 46 | 92 | 116 | 46 | 77 | 84 | 41.5 | 86 | 2 | 8 | 2 | 5 |
| SAE250/46/2PB | 44 | 46 | 112 | 153 | 46 | 102 | 84 | 41.5 | 86 | 2 | 12 | 2 | 7 |
Array

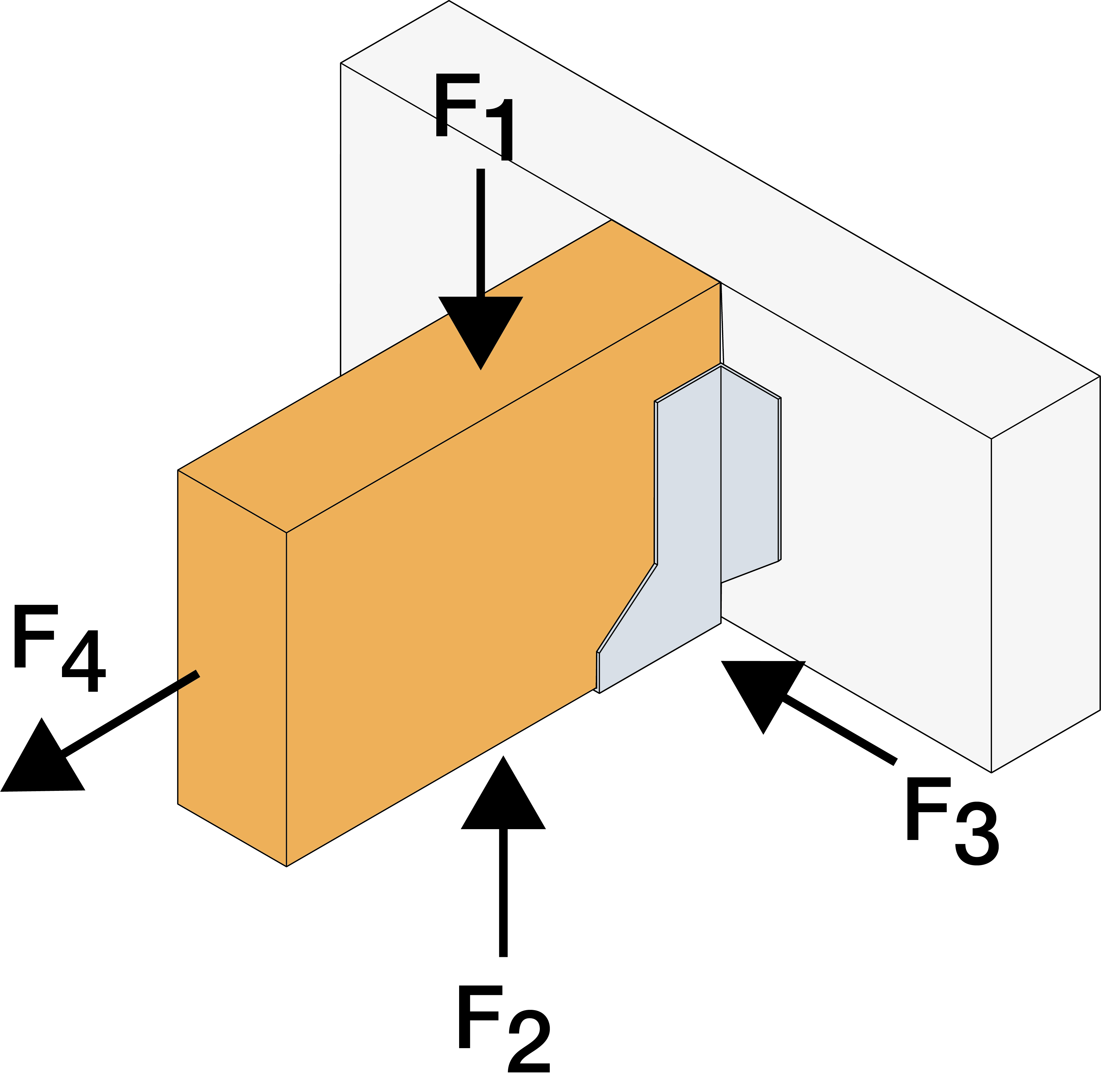

Karakteristisk bärförmåga - Betong - trä
| Art. nr. | Utspikning | Karakteristisk bärförmåga - Konstruktionsträ C24 [kN] | ||||||
|---|---|---|---|---|---|---|---|---|
| HB | SB | R1.k | R2.k | R3.k | R4.k | |||
| Antal | Typ | Antal | Typ | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | CSA5.0x35PB | |
| SAE200/46/2PB | 2 | Ø10* | 5 | CSA** | 12.8 | 9.2 | 2.8 | 5 |
| SAE250/46/2PB | 2 | Ø10* | 7 | CSA** | 16.5 | 12.8 | 3.8 | 5 |
* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances. The values in this table are given for an installation in the middle of a concrete slab. In other installation condition (close to the edge,...), the designer must check the anchor separately (Our free software Anchor Designer is available for download on our website).
** CSA5,0x35PB
Montage
Montage
SAEPB Mise en oeuvre sur bois - clouage total

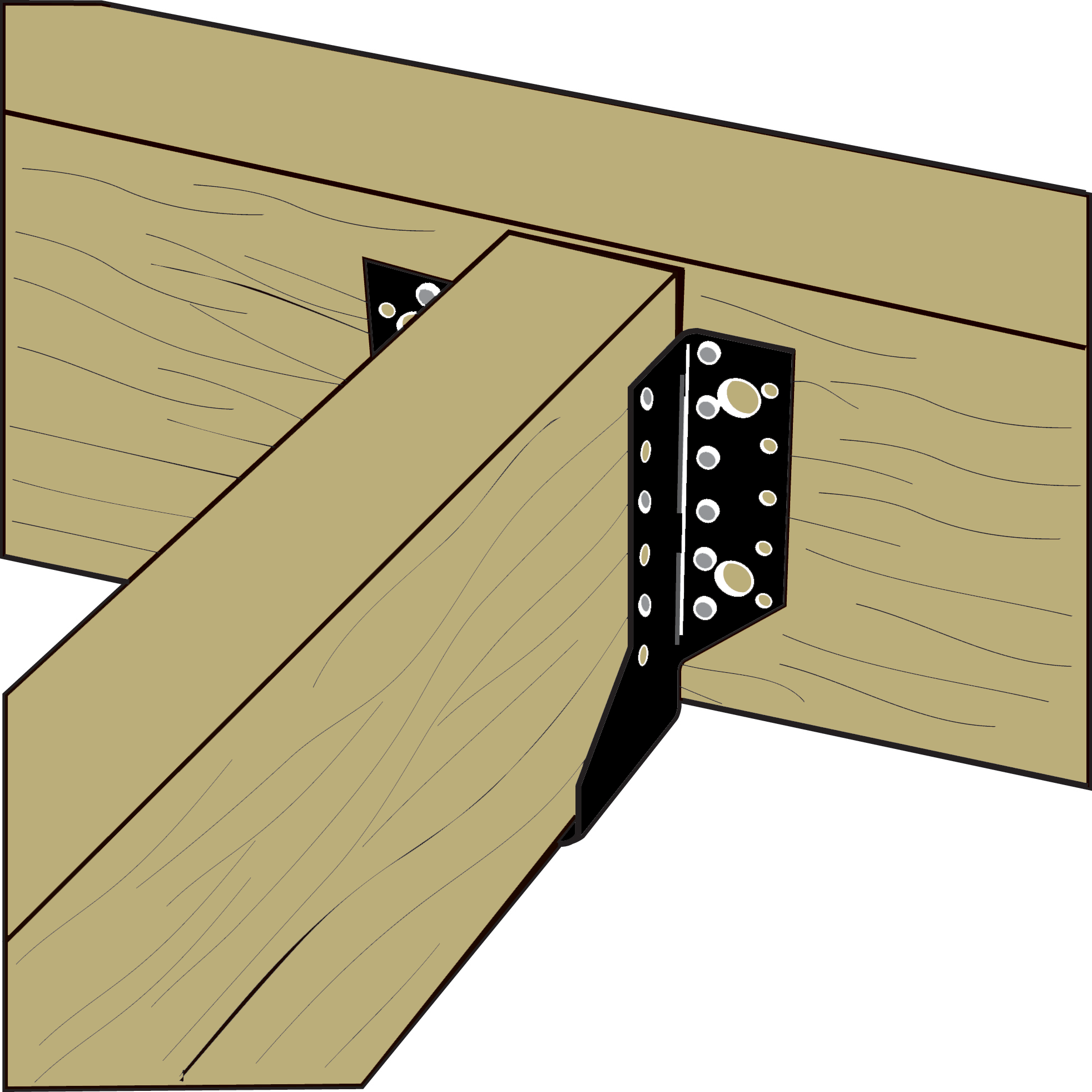

SAEPB Mise en oeuvre sur bois - clouage partiel

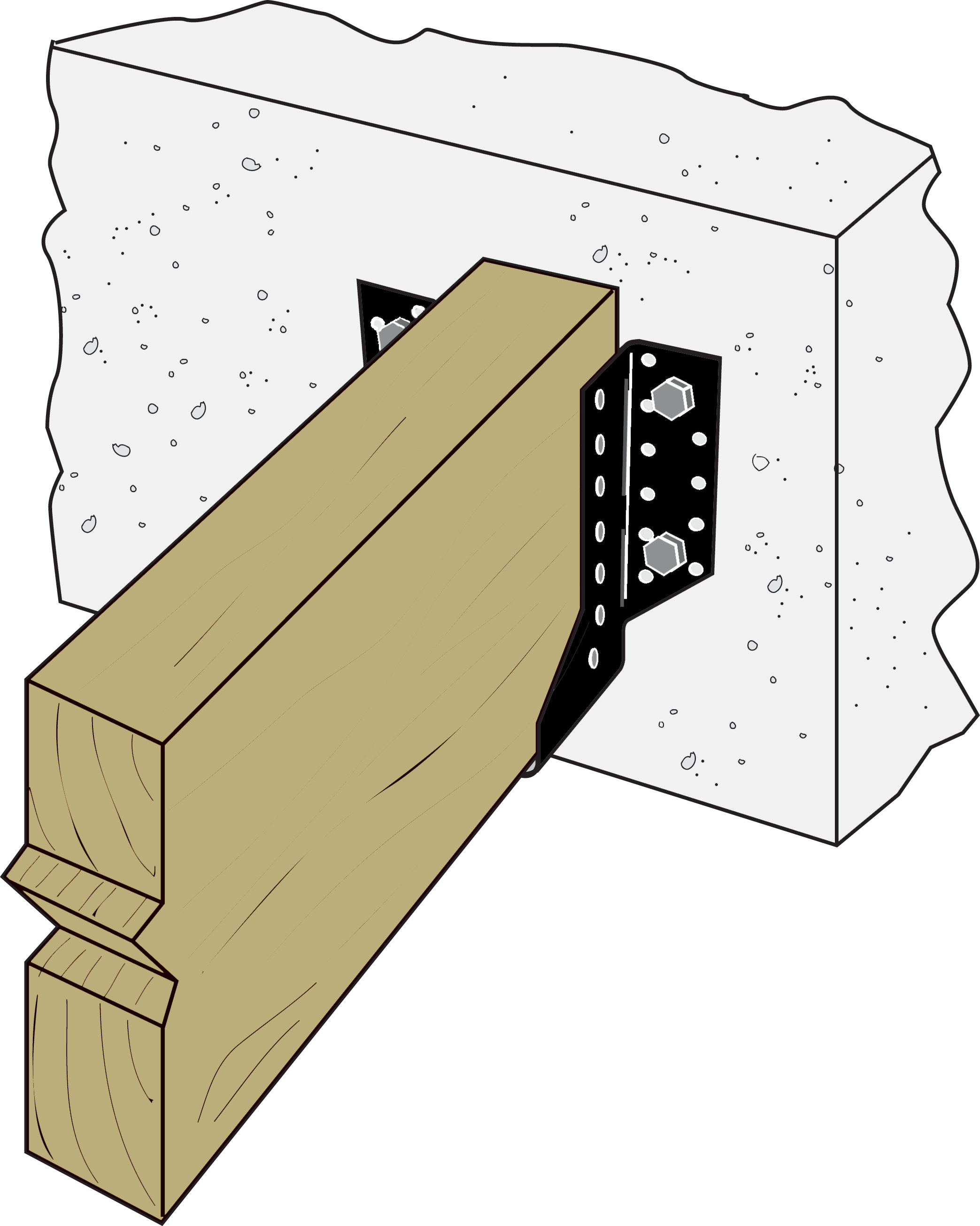

SAEPB - Mise en oeuvre sur béton
