DSPROA4
Skruv för trägolv av hårt trä – rostfritt stål A4

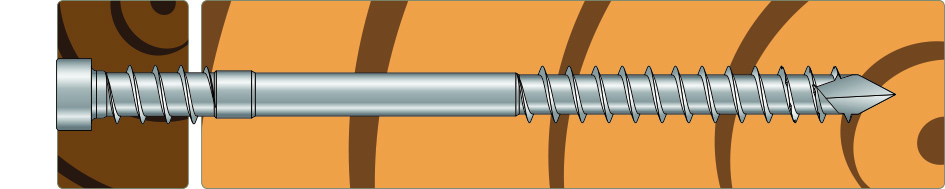

Made for hardwood decking such as Cumaro, Bankirai and others. Can be used in Marine environments. Needs pre-drilling with 4 mm drill and pre-countersinking close to the edge.
CE-märkt
Användningsklass 3
Rostfri och syrafast, A4
Severe
EPD
Produktinformation
Bilder
Egenskaper
Applikationer
Teknisk data
Dimensioner
Dimensioner
| Art. nr. | Item code | Article number | NOBB | Dimensioner [mm] | Bit | Cond. | m² / box | Box Quantity | Vikt [kg] | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l |
dh | d1 |
lg1 |
lg2 | |||||||||
| DSPROA45.5X50 | 74287 | 74287 | 53293777 | 5.5 | 50 | 7 | 3.8 | 22.5 | 10.5 | T-25 | 150 | 4.4 | 150 | 0.005 |
| DSPROA45.5X60 | 74288 | 74288 | 53293781 | 5.5 | 60 | 7 | 3.8 | 27.5 | 10.5 | T-25 | 150 | 4.4 | 150 | 0.005 |
| DSPROA45.5X70 | 74289 | 74289 | 53293796 | 5.5 | 70 | 7 | 3.8 | 32.5 | 10.5 | T-25 | 150 | 4.4 | 150 | 0.005 |
| DSPROA45.5X80 | 74290 | 74290 | 53293800 | 5.5 | 80 | 7 | 3.8 | 37.5 | 10.5 | T-25 | 150 | 4.4 | 150 | 0.006 |
