FM-MP3 evo

Sköldankare

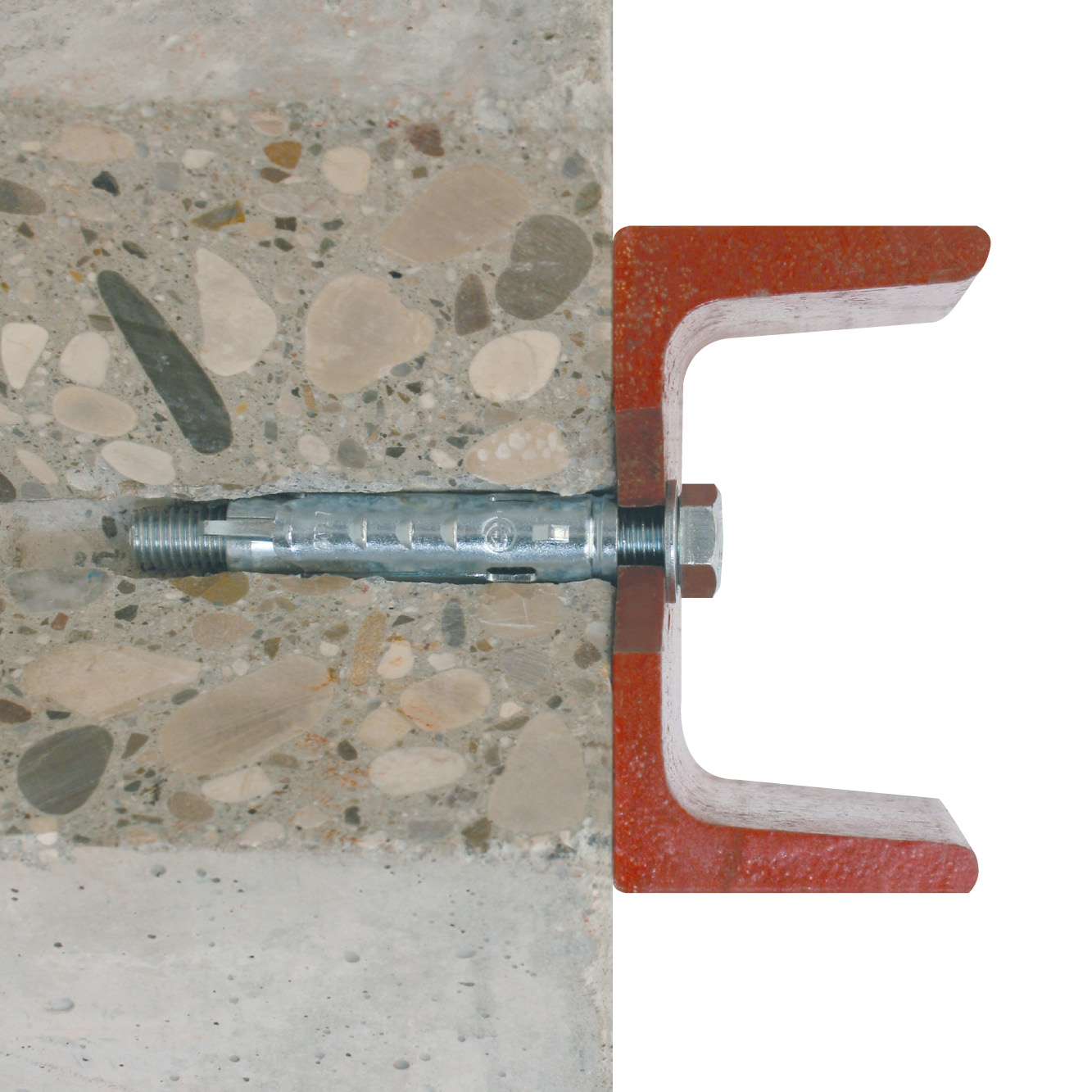

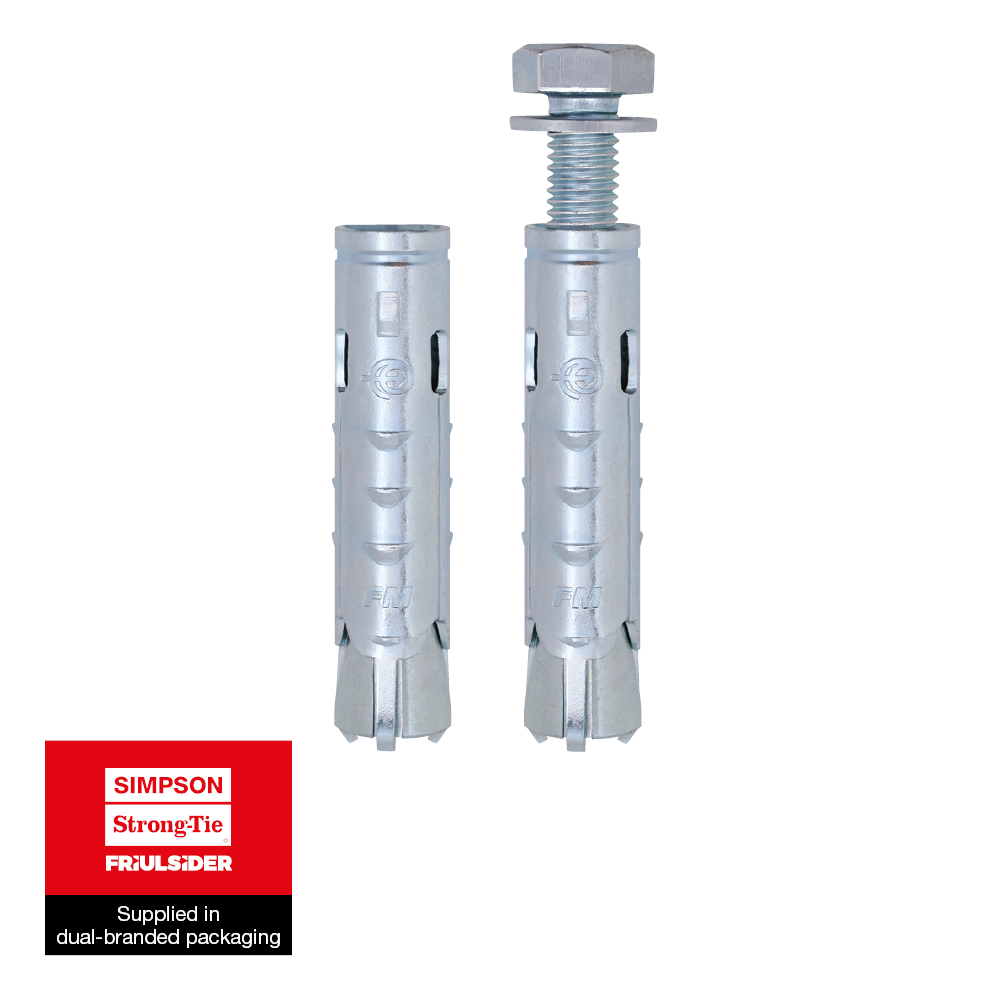

FM-MP3 är tillverkat av galvaniserat stål och monteras i ett förborrat hål, under installationen dras konan in i ankaret som expanderar och skapar en stark förankring.

Tekniskt datablad

CE-märkt

Tekniskt avtal

Elgalvaniserat stål

Indoor

Feu R 120

Fix Calc

Produktinformation

Bilder

Egenskaper

Material

Stål
Elförzinkad

Fördelar

Universellt betongankare som kan användas även för ihåliga material
En solid kropp med unik expansion
Kan användas för många olika applikationer
Brandmotstånd R120

Applikationer

Användningsområden

Säkerhetsbarriärer
Stängsel
Räcken

Lämplig för

Godkänd för:
1. Bärande konstruktioner i osprucken betong
2. Multipel användning i icke-bärande konstruktioner i sprucken och osprucken betong

Teknisk data

Dimensioner

Produktdimension – Endast ankare

Art. nr.	Produktreferens	Plug [Ø x L]	För skruv	Hålets diameter [d_o] [mm]	Min. håldjup [h₁] [mm]	Nominellt infästningsdjup [h_nom] [mm]	Min. sätthöjd [h_ef] [mm]	Hålets diameter i fästelementet [d_f] [mm]	Min. fästtjocklek [h_min] [mm]	Vridmoment [T_inst] [Nm]	Qty per box	Antal per ytterförpackning
73300B1205000	FM-MP3 evo	12x50*	M8	12	70	50	43	10	100	15	50	500
73300B1506000		15x60*	M10	15	80	60	50	12	100	30	25	250
73300B1808000		18x80*	M12	18	100	80	69	14	140	50	20	200

^* Certified product when coupled with hex head screw DIN933 grade 8.8 and washer DIN125-1 (t_fix = L_v – h_nom)

Produktdimension – Sexkantskruv klass 8.8

Art. nr.	Produktreferens	Plug [Ø x L]	Sexkantskruv [Ø x L]	Max. fixturens tjocklek [t_fix] [mm]	Hålets diameter [d_o] [mm]	Min. håldjup [h₁] [mm]	Nominellt infästningsdjup [h_nom] [mm]	Min. sätthöjd [h_ef] [mm]	Hålets diameter i fästelementet [d_f] [mm]	Min. fästtjocklek [h_min] [mm]	Gänglängd [L_v] [mm]	Vridmoment [T_inst] [Nm]	Qty per box	Antal per ytterförpackning
73301B1808000	FM-MP3 evo	18x80	M12x100	20	18	100	80	69	14	140	100	50	20	100

Produktdimension – Sexkantskruv klass 8.8 Stor bricka

Art. nr.	Produktreferens	Plug [Ø x L]	Sexkantskruv [Ø x L]	Max. fixturens tjocklek [t_fix] [mm]	Hålets diameter [d_o] [mm]	Min. håldjup [h₁] [mm]	Nominellt infästningsdjup [h_nom] [mm]	Min. sätthöjd [h_ef] [mm]	Hålets diameter i fästelementet [d_f] [mm]	Min. fästtjocklek [h_min] [mm]	Gänglängd [L_v] [mm]	Vridmoment [T_inst] [Nm]	Qty per box	Antal per ytterförpackning
73307B1004500	FM-MP3 evo	10x45**	M6x50	5	10	60	45	36	8	100	50	8	50	500
73307B1205000		12x50**	M8x60	10	12	70	50	43	10	100	60	15	50	500
73307B1506000		15x60**	M10x80	20	15	80	60	50	12	100	80	30	25	250

^** Not covered by CE certification

Produktdimension – Gängstång klass 5.8

Table "Produktdimension – Gängstång klass 5.8" cannot be displayed : no references available.

^** Not covered by CE certification

Produktdimension – Smidd krokskruv

Table "Produktdimension – Smidd krokskruv" cannot be displayed : no references available.

^**Not covered by CE certification

Produktdimension – Smidd ögla

Table "Produktdimension – Smidd ögla" cannot be displayed : no references available.

^**Not covered by CE certification

Rekommenderade belastningar / för enkelankare / utan kantavstånd eller avstånd - ETA-09/0067

Art. nr.	Produktreferens	Design capacity - Non-cracked concrete (3)
		Spänning - N_rec1)				Skärkraft - V_rec (1-2)				Bending moment MRd [Nm]
		C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	Bending moment MRd [Nm]
73300B1205000	FM-MP3 evo	5.7	7	8	8.8	6.8	8.2	8.2	8.2	17
73300B1506000	FM-MP3 evo	8.3	10.4	12	13.2	8.5	10.3	12	13.2	34
73300B1808000	FM-MP3 evo	11.9	14.5	16.8	18.4	19.3	19.3	19.3	19.3	60

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile
stress within the concrete induced by external loads, anchors loads included).

* The above load values also apply to: evo S

Konstruktionskapacitet – enkel förankring – inga kantavstånd

Art. nr.	Produktreferens	Dimensioneringskapacitet – icke-sprickbildad betong (3)
		Spänning - NRd (1)				Skärkraft - VRd (1-2)				Böjmoment MRd [Nm]
		C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	C20/25 [kN]	C30/37 [kN]	C40/50 [kN]	C50/60 [kN]	Böjmoment MRd [Nm]
73300B1205000	FM-MP3 evo	8	-	-	-	9.3	-	-	-	24
73300B1506000	FM-MP3 evo	1.6	-	-	-	11.6	-	-	-	48
73300B1808000	FM-MP3 evo	16.7	-	-	-	27	-	-	-	84
73301B1808000	FM-MP3 evo	16.7	-	-	-	27	-	-	-	84
73307B1004500	FM-MP3 evo	5	-	-	-	5.1	-	-	-	9.6
73307B1205000	FM-MP3 evo	8	-	-	-	9.3	-	-	-	24
73307B1506000	FM-MP3 evo	11.6	-	-	-	11.6	-	-	-	48

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

** Not covered by CE certification

Rekommenderade belastningar / för enkelankare / utan kantavstånd eller avstånd - ETA-10/0074

Art. nr.	Produktreferens	Konstruktionskapacitet – sprucken och icke-sprucken betong
Art. nr.	Produktreferens	Spänning och skjuvning - F_rec [kN] - C20/25-C50/60
73300B1205000	FM-MP3 evo	5.7
73300B1506000	FM-MP3 evo	7.6
73300B1808000	FM-MP3 evo	9.5

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

* The above load values also apply to: evo S

Produktdimension – D.I.Y – Sexkantskruv

Table "Produktdimension – D.I.Y – Sexkantskruv" cannot be displayed : no references available.

Produktdimension – D.I.Y - Smidd krokkrok

Table "Produktdimension – D.I.Y - Smidd krokkrok" cannot be displayed : no references available.

^* Not covered by CE certification

Produktdimension – D.I.Y - Smidd ögla

Table "Produktdimension – D.I.Y - Smidd ögla" cannot be displayed : no references available.

^* Not covered by CE certification

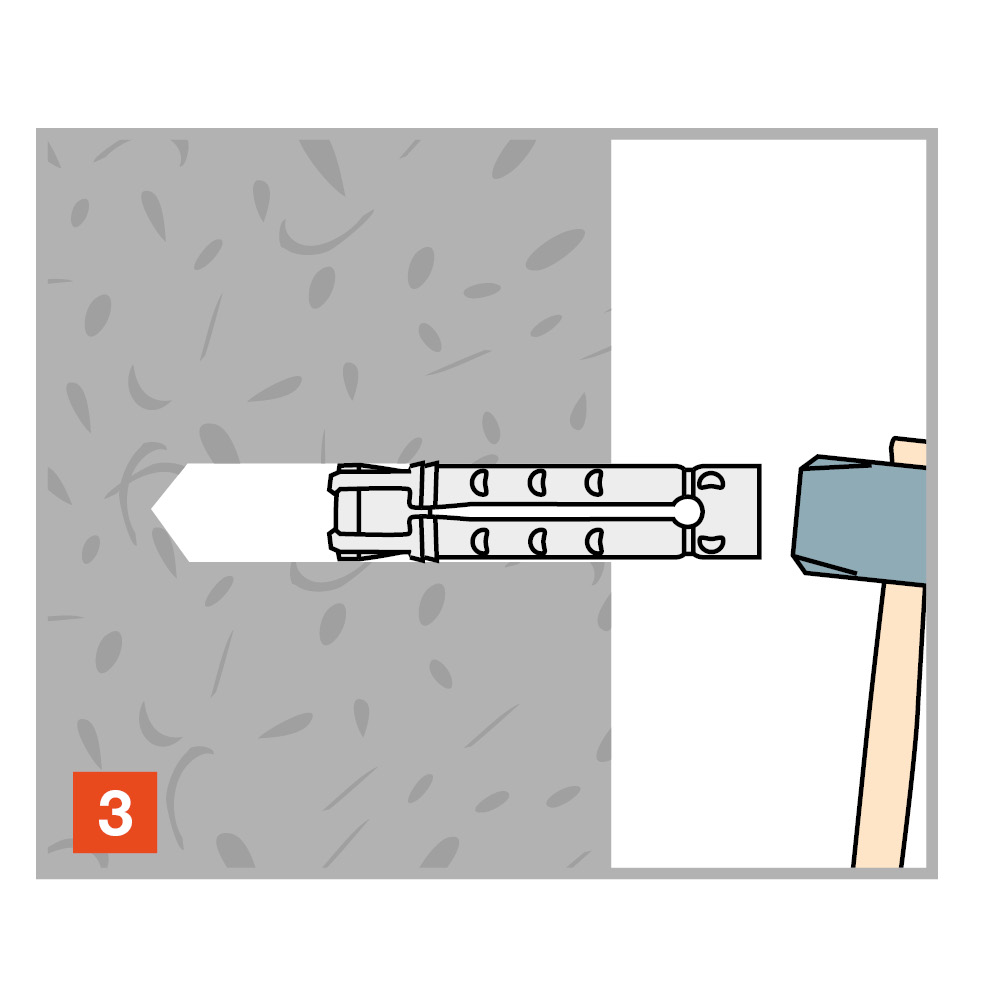

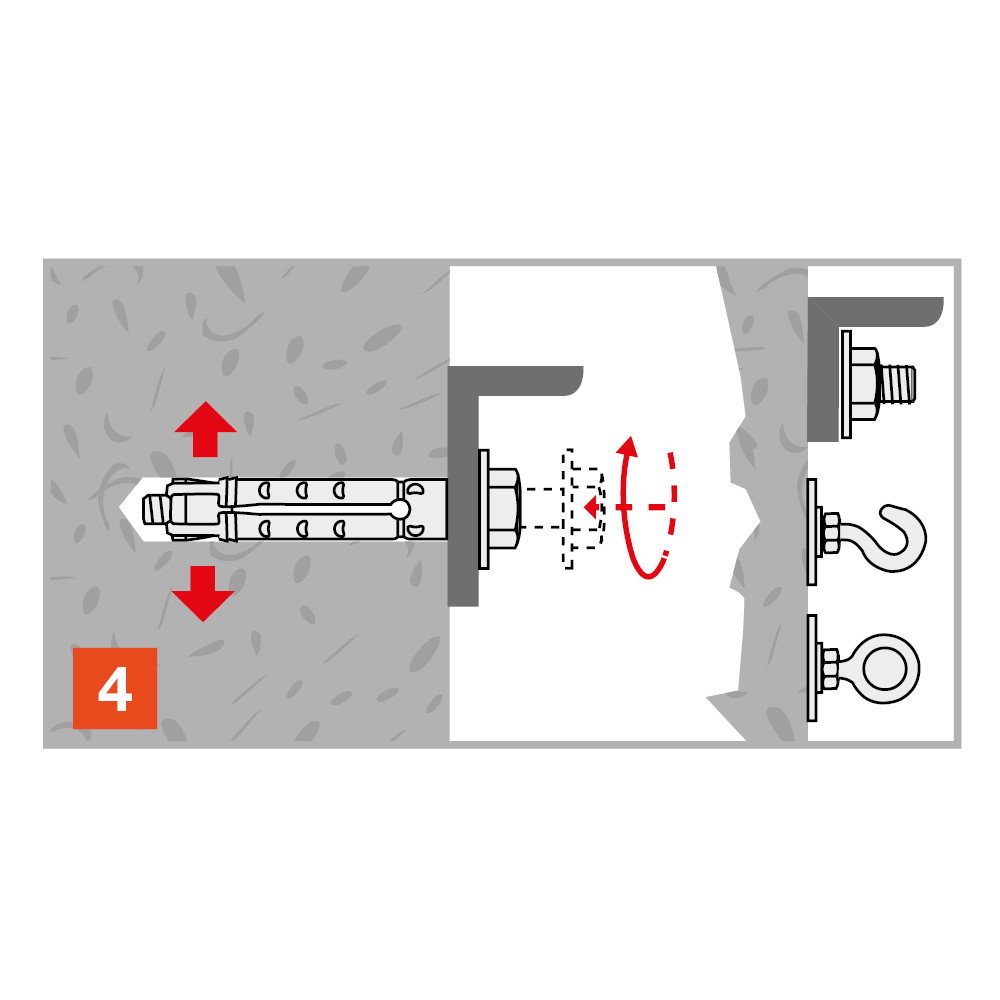

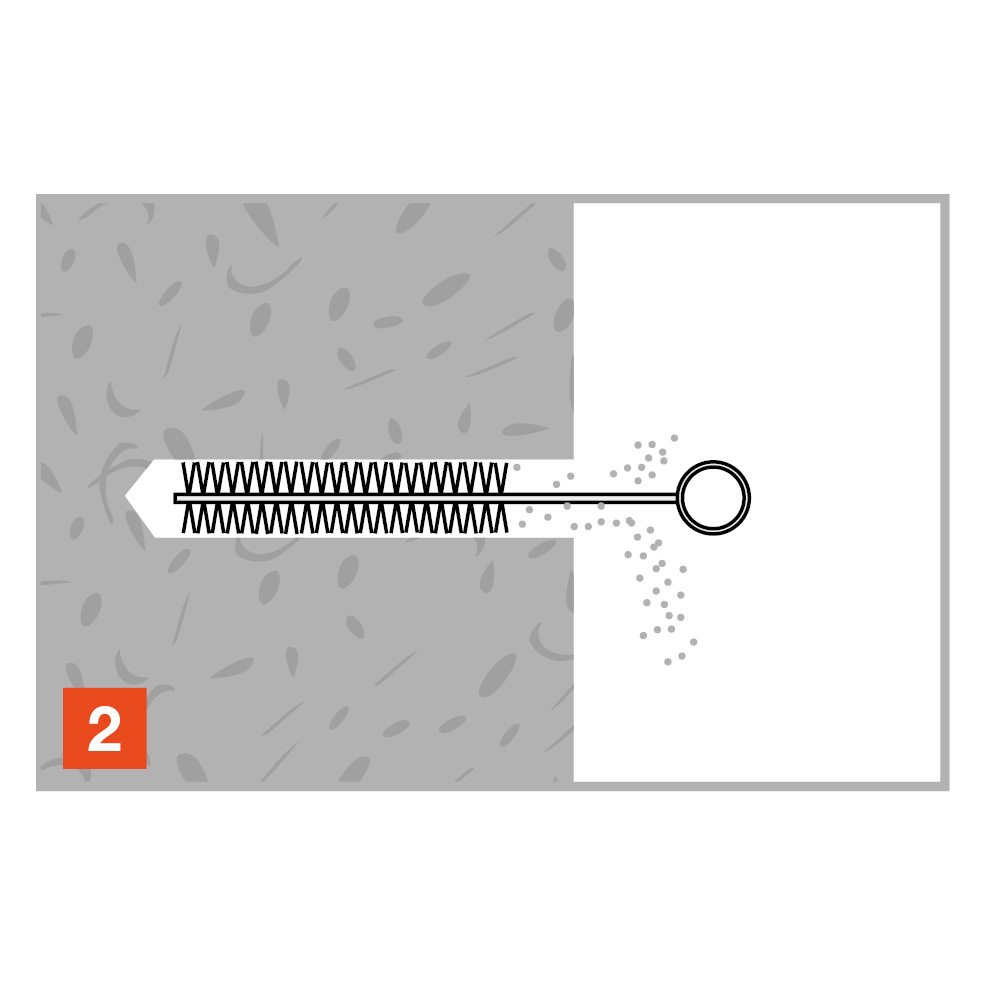

Montage

Installation data

Art. nr.	Produktreferens	Ø drilling hole [d0] [mm]	Min. borrdjup [h1] [mm]	Ø borrfixtur [df] [mm]	Installation torque [Tinst] [Nm]	Embedment depth [hef] [mm]	Min. stödtjocklek [hmin] [mm]
73300B1205000	FM-MP3 evo	12	70	10	15	43	100
73300B1506000	FM-MP3 evo	15	80	12	30	50	100
73300B1808000	FM-MP3 evo	18	100	14	50	69	140
73301B1808000	FM-MP3 evo	18	100	14	50	69	140
73307B1004500	FM-MP3 evo	10	60	8	8	36	100
73307B1205000	FM-MP3 evo	12	70	10	15	43	100
73307B1506000	FM-MP3 evo	15	80	12	30	50	100

** Not covered by CE certification

Avstånd och kantavstånd – ETA-09/0067

Art. nr.	Produktreferens	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]	Characteristic edge distance [ccr,N] [mm]	Karakteristiskt avstånd (5) - Scr,N [scr,N] [mm]
73300B1205000	FM-MP3 evo	45	45	65	130
73300B1506000	FM-MP3 evo	50	50	75	150
73300B1808000	FM-MP3 evo	75	75	104	208

* The above table values also apply to: evo S

Spacings and edge distances - ETA-10/0074

Art. nr.	Produktreferens	Characteristic spacing(5) - Scr,N [scr,N] [mm]	Characteristic edge distance [ccr,N] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]
73300B1205000	FM-MP3 evo	45	45	200	130
73300B1506000	FM-MP3 evo	50	50	200	150
73300B1808000	FM-MP3 evo	75	75	200	210

* The above table values also apply to: evo S
