NEDC

Nedsänkningsbeslag

Beslaget används för nedsänkning av tak vid montage av tekniska installationer. Produkten är utvecklat utifrån Eurokod 5 och uppfyller kraven för kantavstånd.

Production Status
discontinued
Tekniskt datablad
Användningsklass 2
EPD

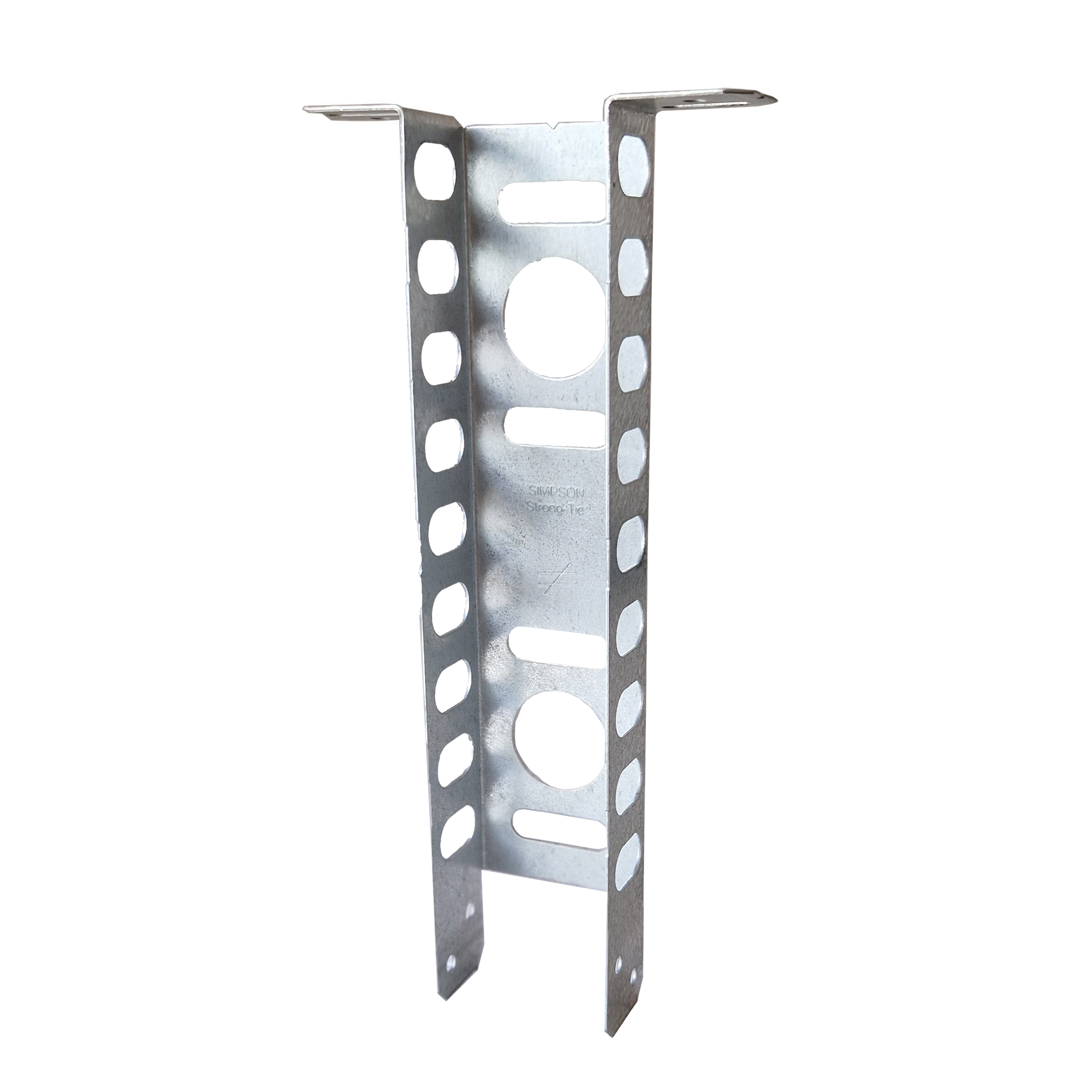

NEDC48277_main

Produktinformation

Bilder

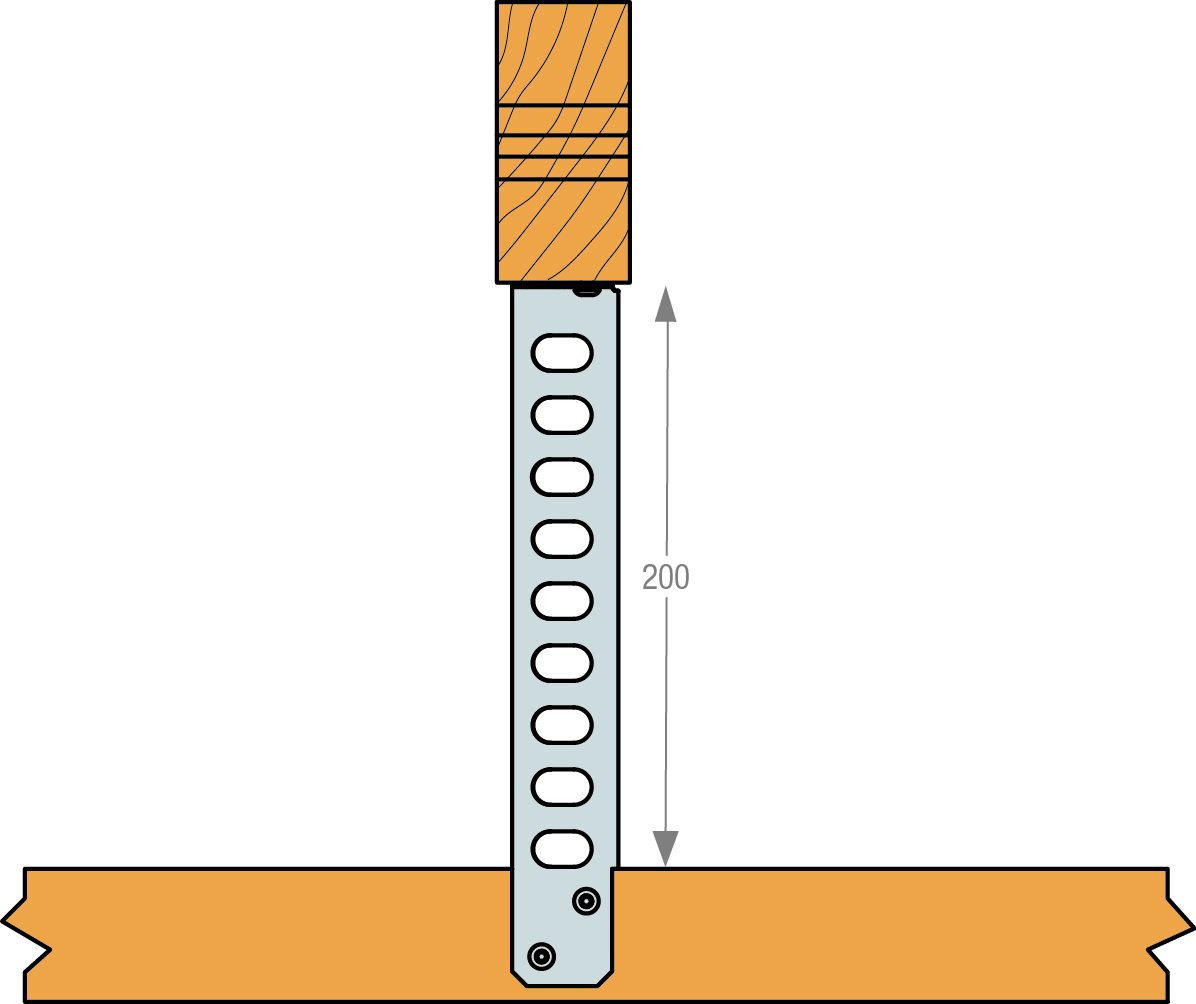

NEDC48227 inst. 2

Egenskaper

Material

  • Steel:
    S250GD + Z275 according to DIN EN 10346
  • Corrosion protection:
    275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm

Benefits

To avoid damage to the vapor barriers, reinforcements have been made around the mounting holes.

For easier installation, a mounting mark has been added.

Applikationer

When to use

The suspension bracket is used in roof constructions where technical installations are routed at ceiling level.

The bracket is for suspending rafter planks, onto which the ceiling cladding is to be mounted.

It is used in warm attic duct spaces where ventilation pipes, water pipes, and electrical installations are routed.

Teknisk data

Dimensioner

NEDC48227 ABC

Product dimensions

Table "Product dimensions" cannot be displayed : no references available.

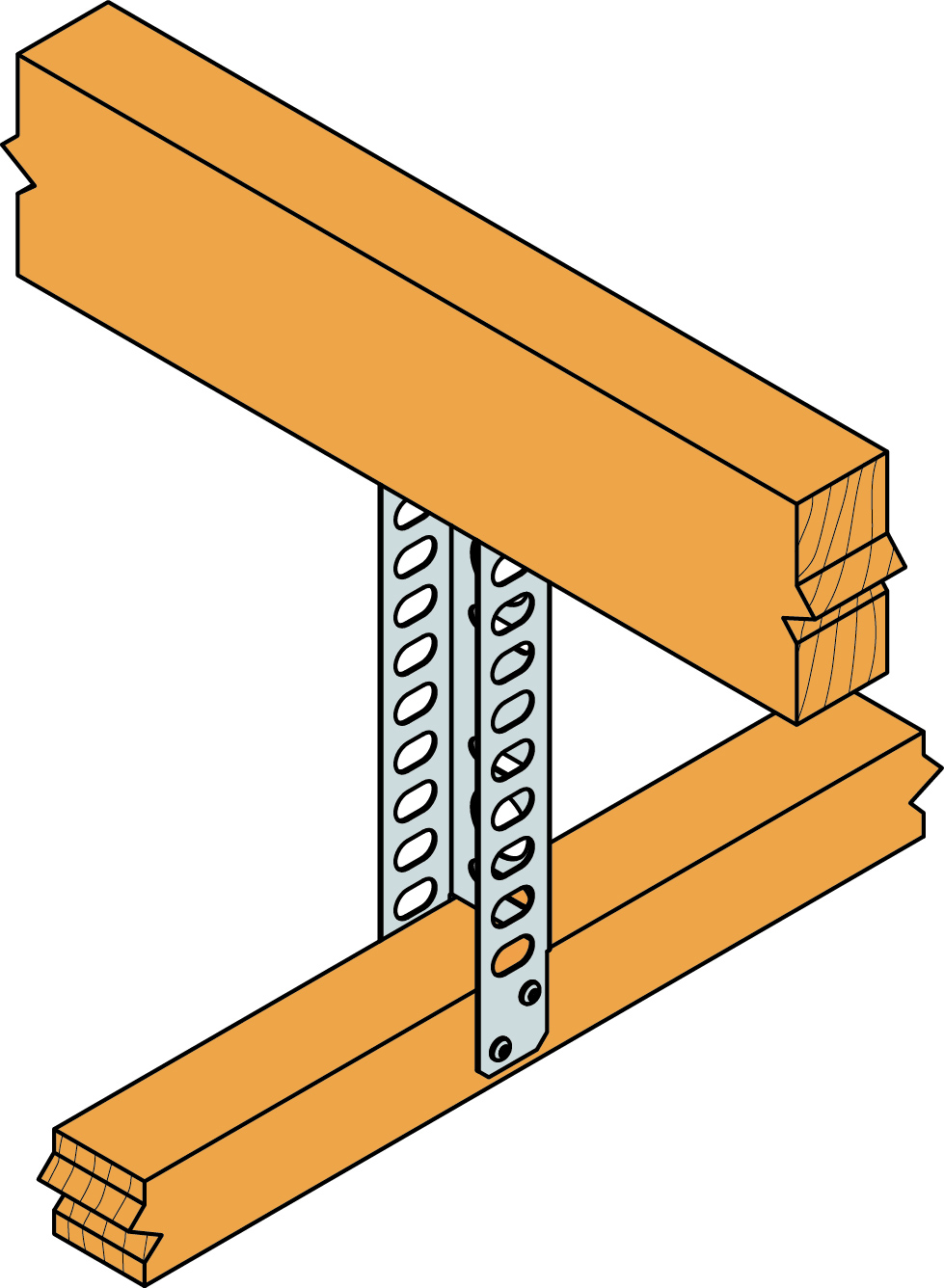

Montage

Montage

Fixing

  • Connecting with CSA4,0x40 connector screw

Certifiering

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

ZIP-paket
